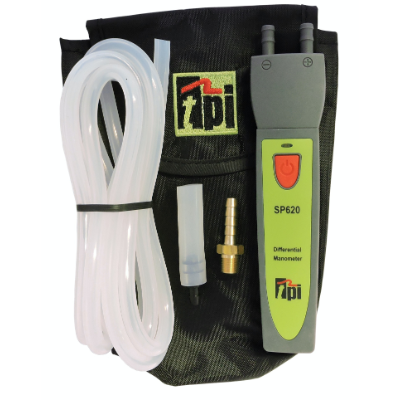

Smart Probe Differential Pressure Meter with +/- 60"H20

Dual input manometer with +/- 60 inH2O input range. Use with TPI Smart Probe App to display pressure. Seven units of measure include inH2O, PSI, inHg, mbar, kPa, mmHg, and mmH2O. One touch zero function and Trim mode to stabilize fast changing pressures.

Features:

• 0.01 inH2O resolution
• High accuracy +/-0.02 inH2O less than 1 inH20; 1.5% above 1 inH20
• Temperature compensated
• Trim mode to stabilize fluctuating readings
• Seven units of measure

Applications:

• Test duct pressure and perform static pressure checks
• Adjust appliance regulators
• Test pressure switch on a 2-stage gas furnace in both positive and negative pressures.
• Setting delivery pressures
• Leakage “shut-in” tests
• Regulator adjustments for pressure and lock-up tests
• Check air filters by measuring pressure drop
